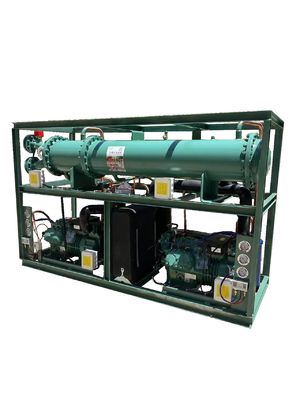

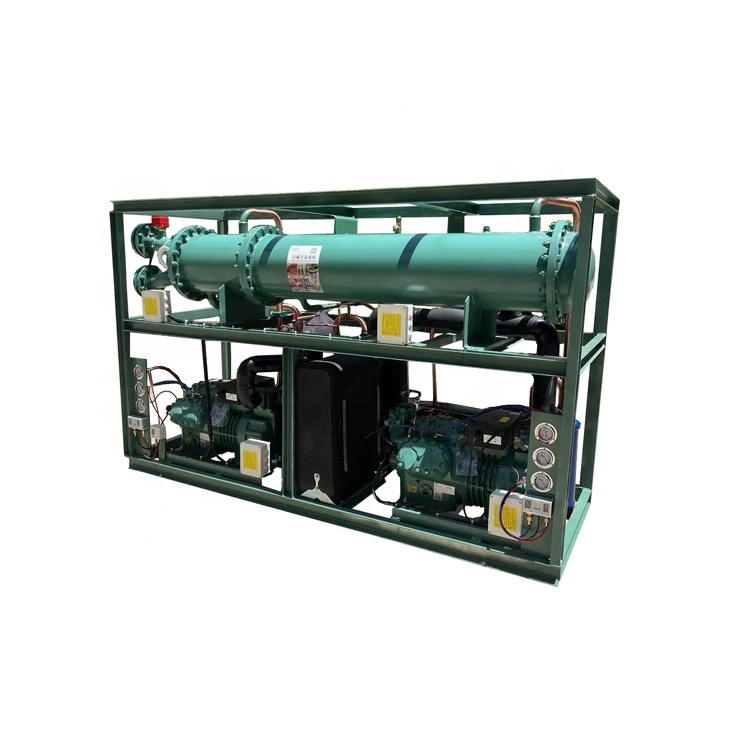

30HP Water Cooled Condensing Unit with -70℃ Cooling Capacity and 380V/3Ph/50Hz Voltage for Industrial Refrigeration
Éntreme en contacto con gratis las muestras y los vales.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.
xDatos del producto
| Voltaje | 380V 50Hz | Capacidad de enfriamiento | -70 ℃ |
|---|---|---|---|
| Peso | 1500 kg | Tipo de compresor | Pistón semiserrado |
| Refrigerante | R404a/R23 | Potencia de caballo | 30 hp |
| Rango de temperatura | -40 ℃ a -70 ℃ | Marca de compresores | Famoso |
| Componentes centrales | Compresor | Fuente de alimentación | 380V/3PH/50Hz |
| Método de enfriamiento | Agua enfriada | Modelo de compresor | 6GE-34Y |
| Tipo de unidad de condensación | Cascada | Tipo de producto | unidad de condensación |
| Tipo de operación | Baja temperatura | ||
| Resaltar | 30HP Water Cooled Condensing Unit,-70℃ Cooling Capacity Condensing Unit,380V/3Ph/50Hz Voltage Condensing Unit |
||
Descripción de producto
6GE-34Y 30HP Compressor Low Temperature Condensing Unit
High-performance 30HP cascade condensing unit with water cooling system, designed for industrial refrigeration applications.
| Product Specification | Details |
|---|---|
| Product Name | Water cooled condensing unit |
| Compressor Horsepower | 30HP cascade4 30HP |
| Refrigerant | R404A/R23 |
| Origin | Made in China |
Customized products require more parameters, please contact us
Product Images
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: This compressor we are agent, but we are factories that produce condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: By express/By air/By sea.
Q3: What about the payment methods & payment terms?
A3: We accept T/T, Paypal, Western Union, Cash and etc. After 30% deposit, and 70% balance before the shipment.
Q4: What's your delivery time? Where is the loading port?
A4: Usually within 35-60 days after receiving the payment. Loading port: Shanghai, other place in China according to your requirement.
Q5: Can I have a sample first?
A5: You have to pay sample cost.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery. The delivery time is according to the way of shipping.
Packaging & Shipping
Customization Options
- Refrigeration industry, cold storage engineering
- Agriculture, food, restaurant, chemical industry
- We can undertake designs according to customer's requirements
Warranty & Service
KUB provides up to one year warranty period. If there is any product quality problems, we will return processing, and is responsible in the end. We provide excellent service to solve your worries.
